ĐO ĐIỆN TRỞ CÁCH ĐIỆN KYORITSU 3131A

  • Model
    3131A
  • Lượt xem
    486
  • Tình trạng
    79
  • Hãng sản xuất
    KYORTISU
  • Xuất xứ
    Thái Lan
  • Bảo hành
    12 Tháng
  • Phụ kiện
    Chính hãng
  • Giá (có 10% VAT)
    4,734,000đ
THÊM VÀO GIỎ
MUA NGAY
Tải báo giá

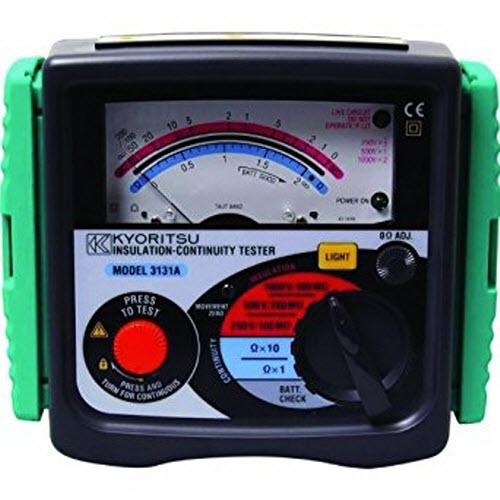

The Model 3131A offers unmatched performance, and feature including test lead resistance zero adjustment for time-saving continuous operation, a clear ease to read illuminated scale, and a live circuit warning.

• Test insulation up to 100MΩ at 250V, 200MΩ at 500V, 400MΩ at 1000V and continuity up to 20Ω.
• LIVE circuit warning lamp plus audible warning.
• Automatic discharge of circuit capacitance when TEST button is released.
• Fuse protected (continuity range only).
• Battery check LED.
• Front panel zero adjust.
• Back light function to facilitate working at dimly lit situations.
• PRESS TO TEST button with lock down feature.

-Test voltage: 250V/500V/1000V

-Measuring ranges: (Mid-scale value)100MΩ/200MΩ/400MΩ
(1MΩ) / (2MΩ) / (4MΩ)

-Output voltage on open circuit: Rated test voltage+20%, -0%

-Nominal current: 1mA DC min.

-Output short circuit current: 1.3 mA DC approx.

-Accuracy: 0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value

-Measuring ranges (Mid-scale value): 2Ω/20Ω (1Ω)/(10Ω)

-Output voltage on open circuit: 4 - 9V DC

-Measuring current: 200mA DC min

-Accuracy: ±3% of scale length

-Safety Standard: IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4

-IP Rating: IEC 60529-IP54

-EMC Standard: IEC 61326-1

-Power source: R6 (AA) (1.5V) × 6

-Dimensions: 167(L) × 185(W) × 89(D)mm

-Weight: 860g approx.

-Included Accessories: 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 6
9121 (Shoulder Strap)
Instruction Manual
