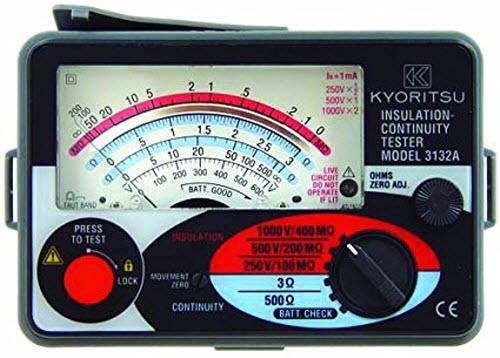

ĐO ĐIỆN TRỞ CÁCH ĐIỆN KYORITSU 3132A

  • Model
    3132A
  • Lượt xem
    490
  • Tình trạng
    79
  • Hãng sản xuất
    KYORITSU
  • Xuất xứ
    Thái Lan
  • Bảo hành
    12 Tháng
  • Phụ kiện
    Chính hãng
  • Giá (có 10% VAT)
    3,557,000đ
THÊM VÀO GIỎ
MUA NGAY
Tải báo giá
•Dust and drip proof construction. (designed to IEC 60529 IP54)
•Designed to meet IEC 61010-1 and IEC 61557 safety standard.
•1mA rated test current at the minimum resistance.
•200mA measuring current on continuity testing.
•Automatic discharge of circuit capacitance.
(Any charge stored in the circuit under test will be automatically discharged after testing.)
•Live circuit warning buzzer and neon lamp.
•Small and lightweight. Shock resistant new case material.
•AC voltmeter with linear, easy-to-read scale.
•Operates on AA, R6 × 6 dry batteries.

-Test voltage: 250V/500V/1000V

-Measuring ranges (Mid-scale value): 100MΩ/200MΩ/400MΩ (1MΩ) (2MΩ) (4MΩ)

-Output voltage on open circuit: Rated test voltage+20%, -0%

-Nominal current: 1mA DC min.

-Output short circuit current: 1 - 2mA DC

-Accuracy: 0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value

-Measuring ranges (Mid-scale value): 3Ω/500Ω (1.5Ω) / (20Ω)

-Output voltage on open circuit: 4.1V DC approx.

-Measuring current: 210mA DC min.

-Accuracy: ±1.5% of scale length

-AC Voltage: 0 - 600V AC

-Accuracy: ±5% of scale length

-Safety Standard: IEC 61010-1 CAT III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4

-IP Rating: IEC 60529-IP54

-EMC Standard: IEC 61326-1

-Power source: R6 (AA) (1.5V) × 6

-Dimensions: 106(L) × 160(W) × 72(D)mm

-Weight: 560g approx.

-Included Accessories: 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 6
9121 (Shoulder Strap)
Instruction Manual
