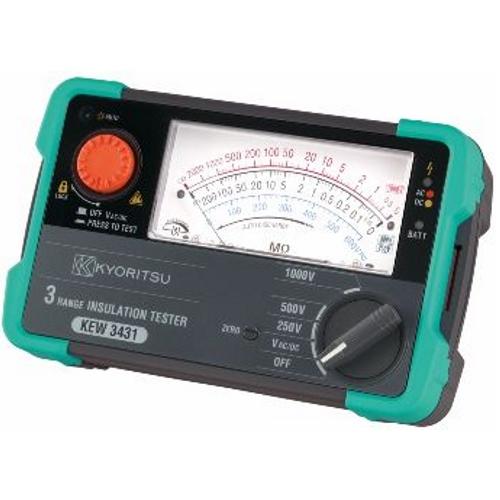

ĐO ĐIỆN TRỞ CÁCH ĐIỆN KYORITSU K-3431

  • Model
    K-3431
  • Lượt xem
    486
  • Tình trạng
    79
  • Hãng sản xuất
    KYORITSU
  • Xuất xứ
    Nhật Bản
  • Bảo hành
    12 Tháng
  • Phụ kiện
    Chính hãng
  • Giá (có 10% VAT)
    8,074,000đ
THÊM VÀO GIỎ
MUA NGAY
Tải báo giá
• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.

Insulation resistance

-Test voltage:  250V/500V/1000V

-Max. effective scale value: 200MΩ/2000MΩ

-Mid-scale value: 5MΩ/50MΩ

-First effective measuring ranges: 0.1MΩ - 100MΩ1MΩ - 1000MΩ

-Accuracy: ±5% of indicated value

-Second effective measuring ranges: Measuring ranges other than above, 0 and ∞

-Accuracy: ±10% of indicated value

-LED insulation state indicator indicating result by red / green color: 0.25MΩ/0.5MΩ/1MΩ

Voltage measurement

-Voltage range: AC 600V [45 - 65Hz]/DC 600V

-Accuracy: ±5% of full scale value

-Applicable Standards: +IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2

+IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS)

-Power source: LR6/R6(AA)(1.5V) × 4

-Dimensions / Weight: 97(L) × 156(W) × 46(D)mm / 430g approx.

-Included Accessories: +7260(Test lead with remote control switch),

+7261(Test lead with alligator clip), 9173(Carrying case),

+8017A(Extension prod long), 9121(Shoulder strap),

+LR6(AA) × 4, Instruction manual

-Optional Accessories: 7243(L-shaped probe), 8016(Hook type prod)
